来源于 Dulaglitude 的具有 31 个氨基酸的片段, Dulaglitude 是胰高血糖素样肽 1 受体 (GLP-1) 激动剂。
编号：200486
CAS号：923950-08-7
单字母：H2N-HGEGTFTSDVSSYLEEQAAKEFIAWLVKGGG-OH
GLP-1 moiety from Dulaglutide 是来源于 Dulaglitude 的具有 31 个氨基酸的片段, Dulaglitude 是胰高血糖素样肽 1 受体 (GLP-1) 激动剂, 来自专利 US 20160369010 A1。
GLP-1 moiety from Dulaglutide is a 31-amino acid fragment of Dulaglutide which is a glucagon-like peptide 1 receptor (GLP-1) agonist, extracted from patent US 20160369010 A1.
Dulaglutide是胰高血糖素样肽1（GLP-1）受体激动剂。
Anthony Celeste, et al. Anti-pcsk9-glp-1 fusions and methods for use. US 20160369010 A1. : http://www.google.com/patents/US20160369010
多肽H2N-His-Gly-Glu-Gly-Thr-Phe-Thr-Ser-Asp-Val-Ser-Ser-Tyr-Leu-Glu-Glu-Gln-Ala-Ala-Lys-Glu-Phe-Ile-Ala-Trp-Leu-Val-Lys-Gly-Gly-Gly-COOH的合成步骤：
1、合成CTC树脂：称取0.44g CTC Resin（如初始取代度约为0.67mmol/g）和0.35mmol Fmoc-Gly-OH于反应器中，加入适量DCM溶解氨基酸（需要注意，此时CTC树脂体积会增大好几倍，避免DCM溶液过少），再加入0.88mmol DIPEA（Mw：129.1,d：0.740g/ml），反应2-3小时后，可不抽滤溶液，直接加入1ml的HPLC级甲醇，封端半小时。依次用DMF洗涤2次，甲醇洗涤1次，DCM洗涤一次，甲醇洗涤一次，DCM洗涤一次，DMF洗涤2次（这里使用甲醇和DCM交替洗涤，是为了更好地去除其他溶质，有利于后续反应）。得到 Fmoc-Gly-CTC Resin。结构图如下：
2、脱Fmoc：加3倍树脂体积的20%Pip/DMF溶液，鼓氮气30分钟，然后2倍树脂体积的DMF 洗涤5次。得到 H2N-Gly-CTC Resin 。（此步骤脱除Fmoc基团，茚三酮检测为蓝色，Pip为哌啶）。结构图如下：

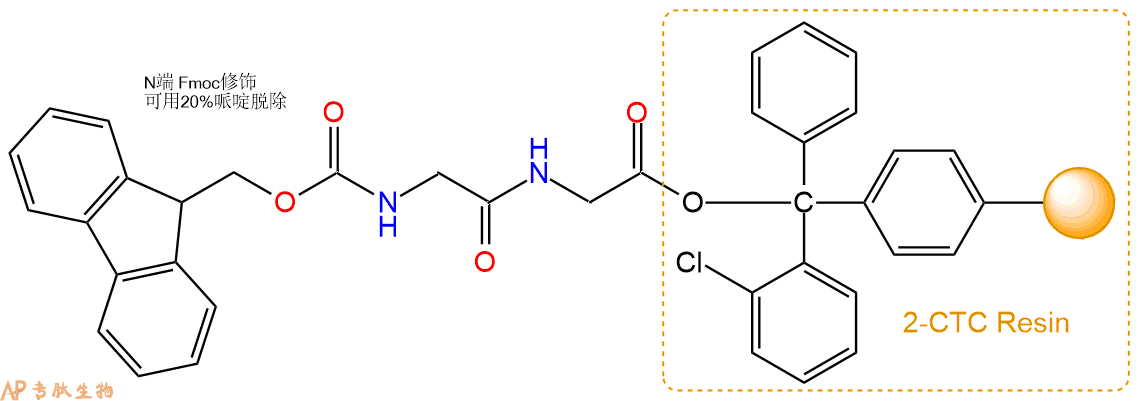

3、缩合：取0.88mmol Fmoc-Gly-OH 氨基酸，加入到上述树脂里，加适当DMF溶解氨基酸，再依次加入1.77mmol DIPEA，0.84mmol HBTU。反应30分钟后，取小样洗涤，茚三酮检测为无色。用2倍树脂体积的DMF 洗涤3次树脂。（洗涤树脂，去掉残留溶剂，为下一步反应做准备）。得到Fmoc-Gly-Gly-CTC Resin。氨基酸：DIPEA：HBTU：树脂=3：6：2.85：1（摩尔比）。结构图如下：
4、依次循环步骤二、步骤三，依次得到
H2N-Gly-Gly-CTC Resin
Fmoc-Gly-Gly-Gly-CTC Resin
H2N-Gly-Gly-Gly-CTC Resin
Fmoc-Lys(Boc)-Gly-Gly-Gly-CTC Resin
H2N-Lys(Boc)-Gly-Gly-Gly-CTC Resin
Fmoc-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
H2N-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
Fmoc-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
H2N-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
Fmoc-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
H2N-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
Fmoc-Ala-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
H2N-Ala-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
Fmoc-Ile-Ala-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
H2N-Ile-Ala-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
Fmoc-Phe-Ile-Ala-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
H2N-Phe-Ile-Ala-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
Fmoc-Glu(OtBu)-Phe-Ile-Ala-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
H2N-Glu(OtBu)-Phe-Ile-Ala-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
Fmoc-Lys(Boc)-Glu(OtBu)-Phe-Ile-Ala-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
H2N-Lys(Boc)-Glu(OtBu)-Phe-Ile-Ala-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
Fmoc-Ala-Lys(Boc)-Glu(OtBu)-Phe-Ile-Ala-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
H2N-Ala-Lys(Boc)-Glu(OtBu)-Phe-Ile-Ala-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
Fmoc-Ala-Ala-Lys(Boc)-Glu(OtBu)-Phe-Ile-Ala-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
H2N-Ala-Ala-Lys(Boc)-Glu(OtBu)-Phe-Ile-Ala-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
Fmoc-Gln(Trt)-Ala-Ala-Lys(Boc)-Glu(OtBu)-Phe-Ile-Ala-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
H2N-Gln(Trt)-Ala-Ala-Lys(Boc)-Glu(OtBu)-Phe-Ile-Ala-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
Fmoc-Glu(OtBu)-Gln(Trt)-Ala-Ala-Lys(Boc)-Glu(OtBu)-Phe-Ile-Ala-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
H2N-Glu(OtBu)-Gln(Trt)-Ala-Ala-Lys(Boc)-Glu(OtBu)-Phe-Ile-Ala-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
Fmoc-Glu(OtBu)-Glu(OtBu)-Gln(Trt)-Ala-Ala-Lys(Boc)-Glu(OtBu)-Phe-Ile-Ala-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
H2N-Glu(OtBu)-Glu(OtBu)-Gln(Trt)-Ala-Ala-Lys(Boc)-Glu(OtBu)-Phe-Ile-Ala-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
Fmoc-Leu-Glu(OtBu)-Glu(OtBu)-Gln(Trt)-Ala-Ala-Lys(Boc)-Glu(OtBu)-Phe-Ile-Ala-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
H2N-Leu-Glu(OtBu)-Glu(OtBu)-Gln(Trt)-Ala-Ala-Lys(Boc)-Glu(OtBu)-Phe-Ile-Ala-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
Fmoc-Tyr(tBu)-Leu-Glu(OtBu)-Glu(OtBu)-Gln(Trt)-Ala-Ala-Lys(Boc)-Glu(OtBu)-Phe-Ile-Ala-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
H2N-Tyr(tBu)-Leu-Glu(OtBu)-Glu(OtBu)-Gln(Trt)-Ala-Ala-Lys(Boc)-Glu(OtBu)-Phe-Ile-Ala-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
Fmoc-Ser(tBu)-Tyr(tBu)-Leu-Glu(OtBu)-Glu(OtBu)-Gln(Trt)-Ala-Ala-Lys(Boc)-Glu(OtBu)-Phe-Ile-Ala-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
H2N-Ser(tBu)-Tyr(tBu)-Leu-Glu(OtBu)-Glu(OtBu)-Gln(Trt)-Ala-Ala-Lys(Boc)-Glu(OtBu)-Phe-Ile-Ala-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
Fmoc-Ser(tBu)-Ser(tBu)-Tyr(tBu)-Leu-Glu(OtBu)-Glu(OtBu)-Gln(Trt)-Ala-Ala-Lys(Boc)-Glu(OtBu)-Phe-Ile-Ala-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
H2N-Ser(tBu)-Ser(tBu)-Tyr(tBu)-Leu-Glu(OtBu)-Glu(OtBu)-Gln(Trt)-Ala-Ala-Lys(Boc)-Glu(OtBu)-Phe-Ile-Ala-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
Fmoc-Val-Ser(tBu)-Ser(tBu)-Tyr(tBu)-Leu-Glu(OtBu)-Glu(OtBu)-Gln(Trt)-Ala-Ala-Lys(Boc)-Glu(OtBu)-Phe-Ile-Ala-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
H2N-Val-Ser(tBu)-Ser(tBu)-Tyr(tBu)-Leu-Glu(OtBu)-Glu(OtBu)-Gln(Trt)-Ala-Ala-Lys(Boc)-Glu(OtBu)-Phe-Ile-Ala-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
Fmoc-Asp(OtBu)-Val-Ser(tBu)-Ser(tBu)-Tyr(tBu)-Leu-Glu(OtBu)-Glu(OtBu)-Gln(Trt)-Ala-Ala-Lys(Boc)-Glu(OtBu)-Phe-Ile-Ala-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
H2N-Asp(OtBu)-Val-Ser(tBu)-Ser(tBu)-Tyr(tBu)-Leu-Glu(OtBu)-Glu(OtBu)-Gln(Trt)-Ala-Ala-Lys(Boc)-Glu(OtBu)-Phe-Ile-Ala-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
Fmoc-Ser(tBu)-Asp(OtBu)-Val-Ser(tBu)-Ser(tBu)-Tyr(tBu)-Leu-Glu(OtBu)-Glu(OtBu)-Gln(Trt)-Ala-Ala-Lys(Boc)-Glu(OtBu)-Phe-Ile-Ala-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
H2N-Ser(tBu)-Asp(OtBu)-Val-Ser(tBu)-Ser(tBu)-Tyr(tBu)-Leu-Glu(OtBu)-Glu(OtBu)-Gln(Trt)-Ala-Ala-Lys(Boc)-Glu(OtBu)-Phe-Ile-Ala-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
Fmoc-Thr(tBu)-Ser(tBu)-Asp(OtBu)-Val-Ser(tBu)-Ser(tBu)-Tyr(tBu)-Leu-Glu(OtBu)-Glu(OtBu)-Gln(Trt)-Ala-Ala-Lys(Boc)-Glu(OtBu)-Phe-Ile-Ala-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
H2N-Thr(tBu)-Ser(tBu)-Asp(OtBu)-Val-Ser(tBu)-Ser(tBu)-Tyr(tBu)-Leu-Glu(OtBu)-Glu(OtBu)-Gln(Trt)-Ala-Ala-Lys(Boc)-Glu(OtBu)-Phe-Ile-Ala-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
Fmoc-Phe-Thr(tBu)-Ser(tBu)-Asp(OtBu)-Val-Ser(tBu)-Ser(tBu)-Tyr(tBu)-Leu-Glu(OtBu)-Glu(OtBu)-Gln(Trt)-Ala-Ala-Lys(Boc)-Glu(OtBu)-Phe-Ile-Ala-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
H2N-Phe-Thr(tBu)-Ser(tBu)-Asp(OtBu)-Val-Ser(tBu)-Ser(tBu)-Tyr(tBu)-Leu-Glu(OtBu)-Glu(OtBu)-Gln(Trt)-Ala-Ala-Lys(Boc)-Glu(OtBu)-Phe-Ile-Ala-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
Fmoc-Thr(tBu)-Phe-Thr(tBu)-Ser(tBu)-Asp(OtBu)-Val-Ser(tBu)-Ser(tBu)-Tyr(tBu)-Leu-Glu(OtBu)-Glu(OtBu)-Gln(Trt)-Ala-Ala-Lys(Boc)-Glu(OtBu)-Phe-Ile-Ala-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
H2N-Thr(tBu)-Phe-Thr(tBu)-Ser(tBu)-Asp(OtBu)-Val-Ser(tBu)-Ser(tBu)-Tyr(tBu)-Leu-Glu(OtBu)-Glu(OtBu)-Gln(Trt)-Ala-Ala-Lys(Boc)-Glu(OtBu)-Phe-Ile-Ala-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
Fmoc-Gly-Thr(tBu)-Phe-Thr(tBu)-Ser(tBu)-Asp(OtBu)-Val-Ser(tBu)-Ser(tBu)-Tyr(tBu)-Leu-Glu(OtBu)-Glu(OtBu)-Gln(Trt)-Ala-Ala-Lys(Boc)-Glu(OtBu)-Phe-Ile-Ala-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
H2N-Gly-Thr(tBu)-Phe-Thr(tBu)-Ser(tBu)-Asp(OtBu)-Val-Ser(tBu)-Ser(tBu)-Tyr(tBu)-Leu-Glu(OtBu)-Glu(OtBu)-Gln(Trt)-Ala-Ala-Lys(Boc)-Glu(OtBu)-Phe-Ile-Ala-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
Fmoc-Glu(OtBu)-Gly-Thr(tBu)-Phe-Thr(tBu)-Ser(tBu)-Asp(OtBu)-Val-Ser(tBu)-Ser(tBu)-Tyr(tBu)-Leu-Glu(OtBu)-Glu(OtBu)-Gln(Trt)-Ala-Ala-Lys(Boc)-Glu(OtBu)-Phe-Ile-Ala-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
H2N-Glu(OtBu)-Gly-Thr(tBu)-Phe-Thr(tBu)-Ser(tBu)-Asp(OtBu)-Val-Ser(tBu)-Ser(tBu)-Tyr(tBu)-Leu-Glu(OtBu)-Glu(OtBu)-Gln(Trt)-Ala-Ala-Lys(Boc)-Glu(OtBu)-Phe-Ile-Ala-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
Fmoc-Gly-Glu(OtBu)-Gly-Thr(tBu)-Phe-Thr(tBu)-Ser(tBu)-Asp(OtBu)-Val-Ser(tBu)-Ser(tBu)-Tyr(tBu)-Leu-Glu(OtBu)-Glu(OtBu)-Gln(Trt)-Ala-Ala-Lys(Boc)-Glu(OtBu)-Phe-Ile-Ala-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
H2N-Gly-Glu(OtBu)-Gly-Thr(tBu)-Phe-Thr(tBu)-Ser(tBu)-Asp(OtBu)-Val-Ser(tBu)-Ser(tBu)-Tyr(tBu)-Leu-Glu(OtBu)-Glu(OtBu)-Gln(Trt)-Ala-Ala-Lys(Boc)-Glu(OtBu)-Phe-Ile-Ala-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
Fmoc-His(Trt)-Gly-Glu(OtBu)-Gly-Thr(tBu)-Phe-Thr(tBu)-Ser(tBu)-Asp(OtBu)-Val-Ser(tBu)-Ser(tBu)-Tyr(tBu)-Leu-Glu(OtBu)-Glu(OtBu)-Gln(Trt)-Ala-Ala-Lys(Boc)-Glu(OtBu)-Phe-Ile-Ala-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin
以上中间结构，均可在专肽生物多肽计算器-多肽结构计算器中，一键画出。

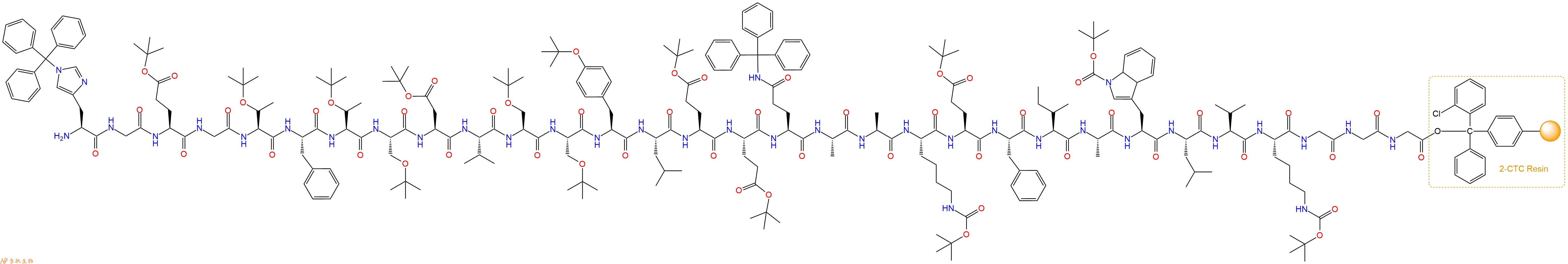

最后再经过步骤二得到 H2N-His(Trt)-Gly-Glu(OtBu)-Gly-Thr(tBu)-Phe-Thr(tBu)-Ser(tBu)-Asp(OtBu)-Val-Ser(tBu)-Ser(tBu)-Tyr(tBu)-Leu-Glu(OtBu)-Glu(OtBu)-Gln(Trt)-Ala-Ala-Lys(Boc)-Glu(OtBu)-Phe-Ile-Ala-Trp(Boc)-Leu-Val-Lys(Boc)-Gly-Gly-Gly-CTC Resin，结构如下：
5、切割：6倍树脂体积的切割液（或每1g树脂加8ml左右的切割液），摇床摇晃 2小时，过滤掉树脂，用冰无水乙醚沉淀滤液，并用冰无水乙醚洗涤沉淀物3次，最后将沉淀物放真空干燥釜中，常温干燥24小试，得到粗品H2N-His-Gly-Glu-Gly-Thr-Phe-Thr-Ser-Asp-Val-Ser-Ser-Tyr-Leu-Glu-Glu-Gln-Ala-Ala-Lys-Glu-Phe-Ile-Ala-Trp-Leu-Val-Lys-Gly-Gly-Gly-COOH。结构图见产品结构图。
切割液选择：1）TFA：H2O=95%：5%
2）TFA：H2O：TIS=95%：2.5%：2.5%
3）三氟乙酸：茴香硫醚：1，2-乙二硫醇：苯酚：水=87.5%：5%：2.5%：2.5%：2.5%
（前两种适合没有容易氧化的氨基酸，例如Trp、Cys、Met。第三种适合几乎所有的序列。）
6、纯化冻干：使用液相色谱纯化，收集目标峰液体，进行冻干，获得蓬松的粉末状固体多肽。不过这时要取小样复测下纯度 是否目标纯度。
